Ruby Oil Skimmer

About Ruby Oil Skimmer

Ruby Oil Skimmer is a Spill Buster oleophilic oil skimmer manufactured for mechanical recovery of oil floating on water. Oil sticks to the skimmer module and is collected in the sump, then pumped to the desired location.

General Specs

Dimensions: 120 cm (W) x 120 cm (L) x 46 cm (H)
Weight: 40 kg (skimmer head), 60 kg (power pack), 80 kg (pump)
Oleophilic type skimmer capacity: 30 m³/h
High output efficiency
Lightweight and heavy duty
Marine grade aluminum body
Four (4) lifting points
Hydraulic quick connections
Sensitive speed adjustment (0-80 rpm)
Interchangeable skimmer modules

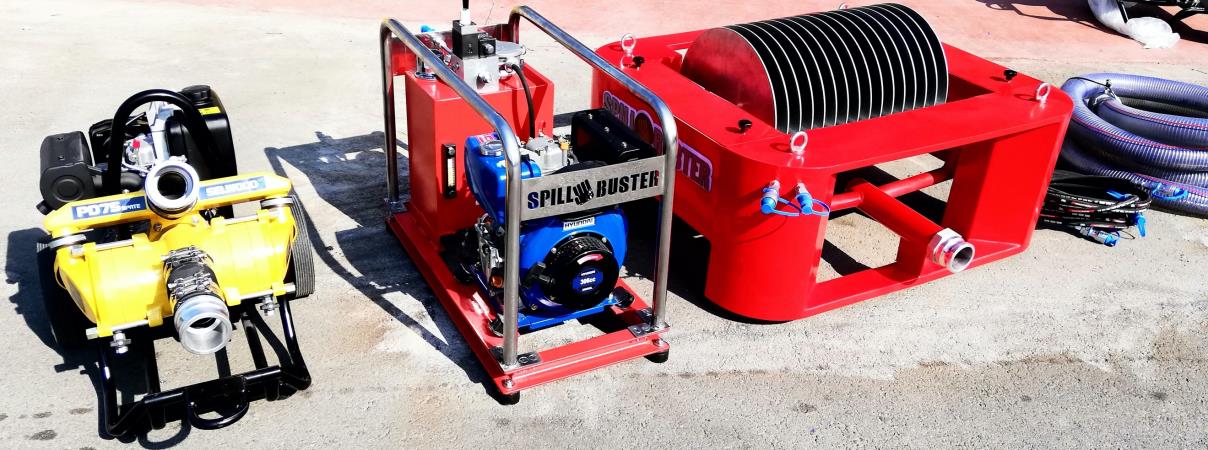

Skimmer Set

1 x Skimmer Head
1 x Pump (Selwood Spate 75)
1 x Diesel Hydraulic Power Pack
10 m Inlet and outlet hoses
5 m Hydraulic hose

Optional Interchangeable Modules

Ruby Oil Skimmer can be fitted, with a single power pack and pump, with three different skimmer heads: Brush Module, Disc Module and Drum Module. Changing the head can be done easily by one person.

Brush Module: rotating brush elements sweep oil from the surface; well suited to thicker, more viscous oil layers.

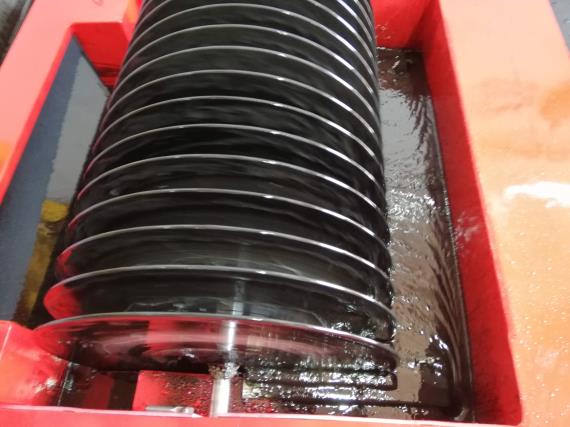

Disc Module: oil adhering to rotating discs is removed by wiper blades; effective on thin, low-viscosity oil films.
Drum Module: oil adhering to a rotating drum surface is scraped off into the sump; suited to medium-viscosity oils.

Pump Specs

Diesel engine driven positive displacement diaphragm type pump (Selwood Spate 75).

Capacity	30 m³/h (132 USgpm)
Total Head	30.5 m – 100 ft Max.
Solids Size	6 mm – 0.23 in
Self-Priming Lift	8.8 m – 29 ft

Diesel Hydraulic Power Pack

Output: 7 HP diesel engine
Hydraulic tank with level and temperature gauge
Sensitive adjustable rotating speed
Independent rotating for each module
Oil filter
Quick couplings for hydraulic hoses
Stainless steel accessories

Why Ruby Oil Skimmer?

Being able to switch between three skimmer head types on a single diesel hydraulic power pack and pump lets field crews match the head to the spill type (thick or thin oil layer), swapping modules alone and without extra equipment. The marine grade aluminum body and four lifting points make the unit easy to transport and position on a vessel deck or along the shoreline.

Ruby or Turquoise?

The Spill Buster family also includes the Turquoise Oil Skimmer, which runs two skimmer modules at the same time. On the Turquoise model the skimmer head weighs 45 kg and two modules work simultaneously; dimensions, capacity, pump and power pack specs are the same as Ruby.

Frequently Asked Questions

What is the recovery capacity of Ruby Oil Skimmer?
The oleophilic skimmer head has a capacity of 30 m³/h, and the pump is sized to match the same flow rate (30 m³/h, 132 USgpm).

Which skimmer modules can be used?
The same power pack and pump run Brush, Disc and Drum modules; the head can be swapped by one person.

How does the power pack work?
The 7 HP diesel-driven hydraulic power pack has a hydraulic tank with level and temperature gauge, sensitive adjustable rotating speed, and independent rotation for each module.

Is the unit easy to transport?
The skimmer head weighs 40 kg, the power pack 60 kg and the pump 80 kg; four lifting points allow crane or manual handling.

What is the difference between Ruby and Turquoise Oil Skimmer?
Ruby runs a single module at a time, while Turquoise Oil Skimmer runs two skimmer modules simultaneously; all other dimensions, capacity, pump and power pack specs are the same.
