Turquoise Oil Skimmer

About Turquoise Oil Skimmer

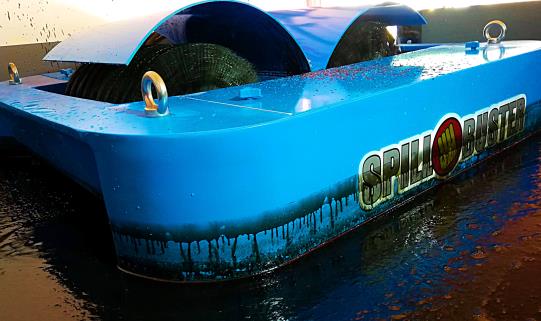

Turquoise Oil Skimmer is a Spill Buster oleophilic oil skimmer manufactured for mechanical recovery of oil floating on water, built to run two skimmer modules working at the same time. Oil sticks to the skimmer modules and is collected in the sump, then pumped to the desired location.

General Specs

Dimensions: 120 cm (W) x 120 cm (L) x 46 cm (H)
Weight: 45 kg (skimmer head), 60 kg (power pack), 80 kg (pump)
Oleophilic type skimmer capacity: 30 m³/h
High output efficiency
Lightweight and heavy duty
Marine grade aluminum body
Four (4) lifting points
Hydraulic quick connections
Sensitive speed adjustment (0-80 rpm)
Interchangeable skimmer modules
2 skimmer modules working at the same time

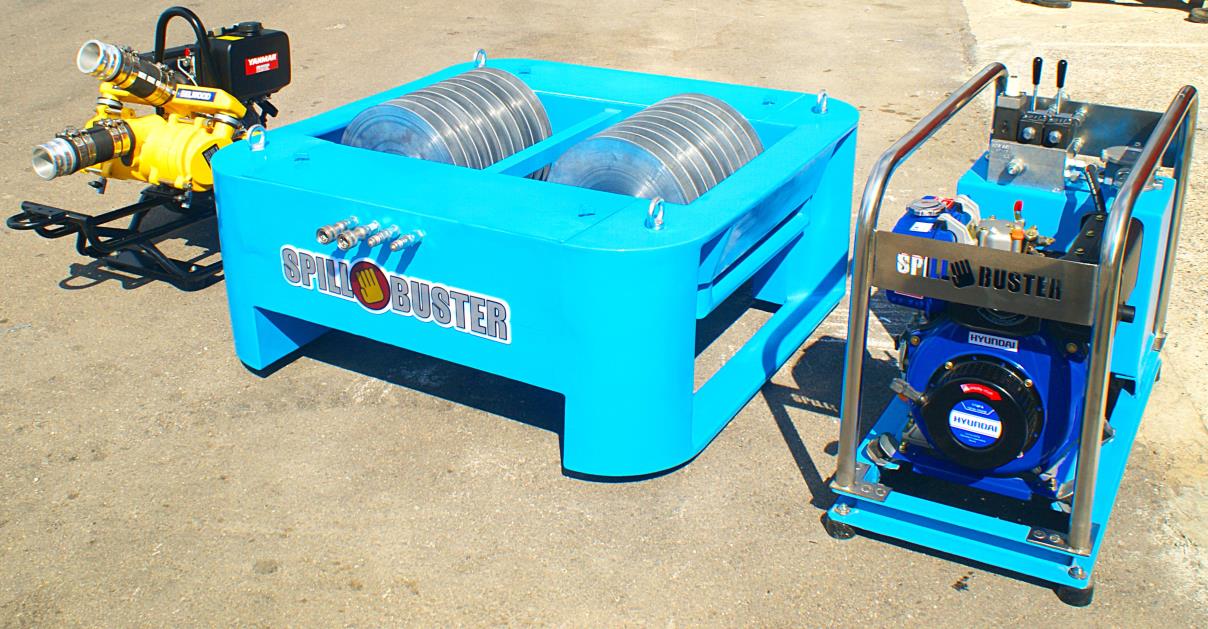

Skimmer Set

1 x Skimmer Head (dual module)
1 x Pump (Selwood Spate 75)
1 x Diesel Hydraulic Power Pack
10 m Inlet and outlet hoses
5 m Hydraulic hose

Optional Interchangeable Modules

Turquoise Oil Skimmer can be fitted, with a single power pack and pump, with three different skimmer head types: Brush Module, Disc Module and Drum Module, running two at a time. Changing the heads can be done easily by one person.

Brush Module: rotating brush elements sweep oil from the surface; well suited to thicker, more viscous oil layers.
Disc Module: oil adhering to rotating discs is removed by wiper blades; effective on thin, low-viscosity oil films.
Drum Module: oil adhering to a rotating drum surface is scraped off into the sump; suited to medium-viscosity oils.

Pump Specs

Diesel engine driven positive displacement diaphragm type pump (Selwood Spate 75).

Capacity	30 m³/h (132 USgpm)
Total Head	30.5 m – 100 ft Max.
Solids Size	6 mm – 0.23 in
Self-Priming Lift	8.8 m – 29 ft

Diesel Hydraulic Power Pack

Output: 7 HP diesel engine
Hydraulic tank with level and temperature gauge
Sensitive adjustable rotating speed
Independent rotating for each module
Oil filter
Quick couplings for hydraulic hoses
Stainless steel accessories

Why Turquoise Oil Skimmer?

Running two skimmer modules at once in a single body gives Turquoise Oil Skimmer a higher recovery rate than the single-module Ruby for larger or more widespread spills, while still using one power pack and pump, and modules that one person can swap.

Turquoise or Ruby?

The Spill Buster family also includes the Ruby Oil Skimmer, which runs a single skimmer module at a time. On the Ruby model the skimmer head weighs 40 kg; dimensions, capacity, pump and power pack specs are the same as Turquoise.

Frequently Asked Questions

Why does Turquoise Oil Skimmer run two modules?
Running two skimmer heads at the same time in one body lets it cover more surface area than the single-module Ruby, useful on larger or more widespread oil layers.

What is Turquoise’s recovery capacity?
The oleophilic skimmer capacity is 30 m³/h, matched by a pump sized for the same flow rate (30 m³/h, 132 USgpm).

Which skimmer modules can be used?
The same power pack and pump run Brush, Disc and Drum modules; two heads work together at the same time.

What is the difference between Turquoise and Ruby Oil Skimmer?
Turquoise runs two skimmer modules together, while Ruby Oil Skimmer runs a single module; all other dimensions, capacity, pump and power pack specs are the same.
